New Energy Power Generation 85KW Cooling Capacity Closed Loop Water Cooling System

Name: New Energy Power Generation 85KW Cooling Capacity Closed Loop Water Cooling System
Brand: YUDA
Price: 1 USD

Brand Name : YUDA

Model Number : LSF-85kw

Certification : CE ISO9001

Place of Origin : China

MOQ : 1

Payment Terms : T/T

Delivery Time : 30days

Packaging Details : Wooden Case

Application Industry : New Energy Wind Power Solar Power Generation

Cooling Capacity : 85 KW

Cooling Method : Closed Loop Water Cooling System

Control Method : Intelligent Temperature Control

Rated Flow Rate : 30 to 120 L per minute

Rated Water Flow Rate : 140 to 150 liters per minute

Main Material : Industrial Grade Aluminum

Ambient Temperature Range : Minus 20 to 45 degrees Celsius

Power Supply : AC 380V 50 Hz or Customized

Contact Now

85KW Cooling Capacity Closed Loop Water Cooling System with Industrial Grade Aluminum for New Energy Power Generation

This advanced 85KW water cooling system is specifically engineered for new energy wind and solar power generation applications within petroleum and petrochemical facilities.

Application Scenarios

The 85KW Petroleum and Petrochemical Grade Water Cooling System is deployed in refineries, chemical plants, oil and gas processing facilities, and energy distribution units where new energy wind and solar power systems are installed. This solution supports both primary and auxiliary power systems and is suitable for containerized power units, substation environments, and protected outdoor installations worldwide, including desert, coastal, and industrial zones.

Key Features

Modular design with exhaust and drain valves for easy maintenance
Comprehensive system includes main circulating pump, electric three-way valve, filter, heater, expansion tank, and air cooler
Advanced temperature and pressure monitoring with independent operation capability
Remote control support via terminal and serial port communication
Constructed with stainless steel, aluminum alloy, and EPDM materials for corrosion resistance
Designed for harsh environments including cold, wind/sand, and salt fog conditions
Special corrosion protection solutions for offshore and marine platform applications

Technical Specifications

Heat dissipation power range	10-200kW
Cooling medium flow range	3-20m³/h
Temperature difference (inlet vs ambient)	≥5℃
Cooling medium	Pure water and ethylene glycol antifreeze
Antifreeze concentration	0-55%
System static pressure	0.15MPa
Design pressure	0.8MPa

Operating Conditions

Operating Ambient Temperature	Minus 30 to 55 degrees Celsius
Storage Temperature	Minus 40 to 70 degrees Celsius
Relative Humidity Range	5 to 98 percent non condensing
Maximum Installation Altitude	3000 meters above sea level
Allowable Vibration Level	5 to 500 Hz at 0.5 g acceleration

Applications

Ideal for heat dissipation in frequency converters, inverters, generators, and rectifiers within wind power generation and photovoltaic power generation systems.

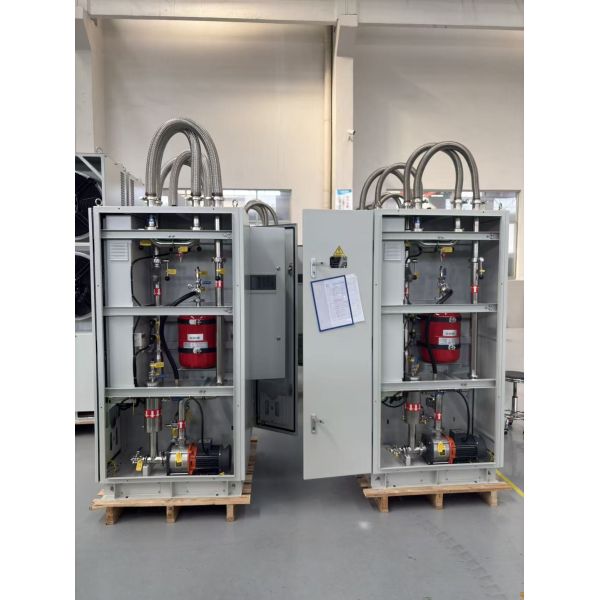

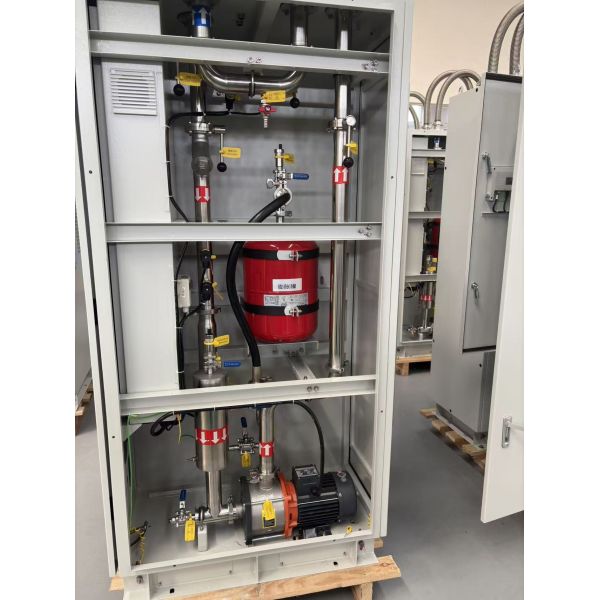

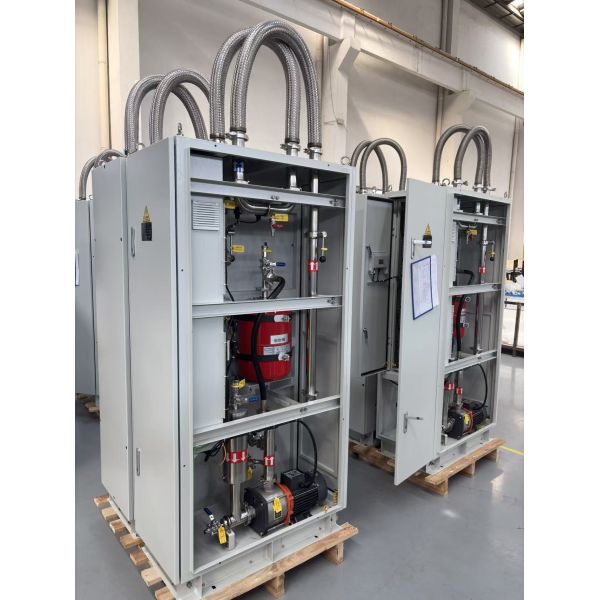

System Images

New Energy Power Generation 85KW Cooling Capacity Closed Loop Water Cooling System
